AKATHERM DBLUE

Acoustic Soil & Waste System

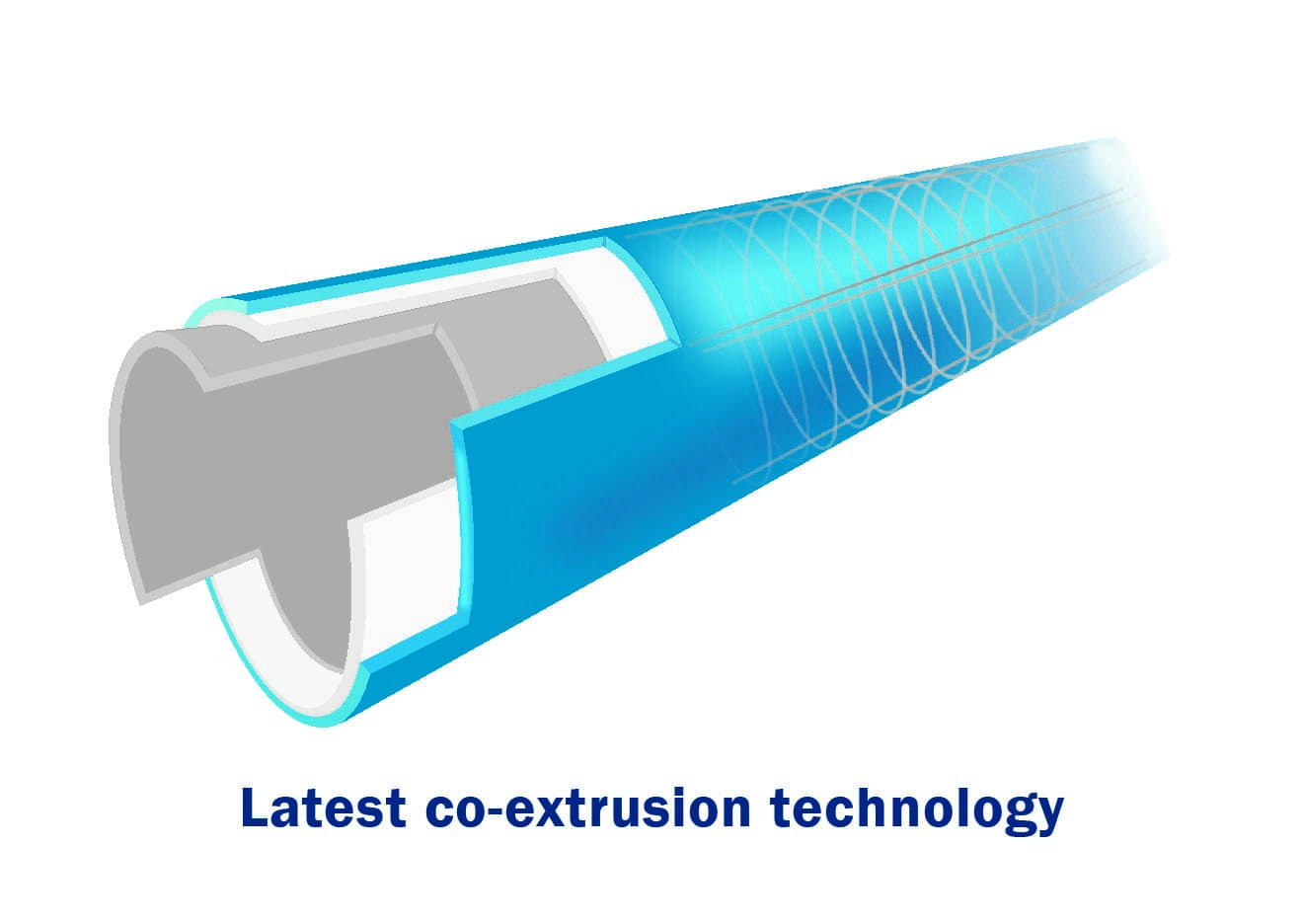

Akatherm dBlue is an innovative noise-attenuated soil & waste drainage system, designed to be installed in accordance with EN12056. It is suitable for use in multi-occupancy applications as well as hospitals and hotels and other commercial applications, where reduced noise levels are preferred. The triple-layer pipe structure is produced using the latest co-extrusion technology. Each layer has its own function optimised to reduce sound levels, increase mechanical characteristics, and improve the drainage flow.

  • Comfort of living

    • End users gain more comfort of living with Akatherm dBlue. The system is optimised for acoustic comfort using the latest production techniques, ensuring an installation that meets the single most stringent noise regulations

  • Produced

    • Its high resistance against heat and chemicals unique products for high-rise, underground approval and dimension up to 200 mm enable Akatherm dBlue to be used as a single system installation in a broad range of applications.

  • Speed of installation

    • A distinctive benefit of Akatherm dBlue is the fast installation. Easy to use and secured socket connections minimise installation time of each joint without further use of electrical tools.

  • Proven systems

    • A distinctive benefit of Akatherm dBlue is the fast installation. Easy to use and secured socket connections minimise installation time of each joint without further use of electrical tools.

    The system has the following features: -
  • Complete rubber ring joint system with excellent sound insulation properties
  • Made from a state-of-the-art combination of polypropylene and sound absorbing mineral filler (PP-MD) for airborne noise reduction
  • A triple layer pipe which is rigid, noise-attenuated with a smooth bore that resists incrustation and blockages
  • dBlue metal brackets with rubber lining dampen vibrations and reduce Structure borne noise
  • Fast and easy installation without special equipment
  • Robust fittings that resist on-site- and transit damage
  • Installation inside the building and embedded in concrete (wrapped connections)
  • Stack-Aerator high-rise solution for single stack downpipes
  • Sustainable system which is 100% recyclable
