Rotabroach Metal Cutting

For over 40 years Rotabroach has been leading the way in the design and manufacture of metal cutting solutions. Rotabroach machines are designed to increase operator safety, versatility and performance. Their market leading range sets an unparalleled standard in quality and technology, and their name remains an industry benchmark. Rotabroach have the perfect platform to deliver superior solutions for your hole cutting requirements.

Magnetic Drills & Cutters

When it comes to choosing the right magnetic drill for your business, you need more than strength and reliability. Beyond the brand, hole size and price, there’s also speed, portability and power to consider, and all your intended uses. For over 40 years, Rotabroach has been providing clients with the magnetic drills that drive industry change and ensure their operations are as efficient and effective as possible.

ELEMENT 50

The ‘Element 50’ is one of Rotabroach’s most versatile machines

  • Motor Specification:
  • No load RPM:
  • Max Hole Cutting Capacity:
  • Magnetic Adhesion:
  • Magnet Size:
  • 110V 1500W / 230V 1500W
  • Low Gear: 100-265 RPM/High Gear: 200-500 RPM
  • ø50 x 50mm Deep
  • 13,500N
  • 200mm x 98mm
  • ELEMENT 100

    Rotabroach’s largest machine (733mm)

    • Motor Specification:
    • No load RPM:
    • Max Hole Cutting Capacity:
    • Magnetic Adhesion:
    • Magnet Size:
  • 110V 2000W / 230V 2000W
  • 45 - 700 RPM
  • ø100 x 100mm Deep
  • 20,000N
  • 228mm x 114mm

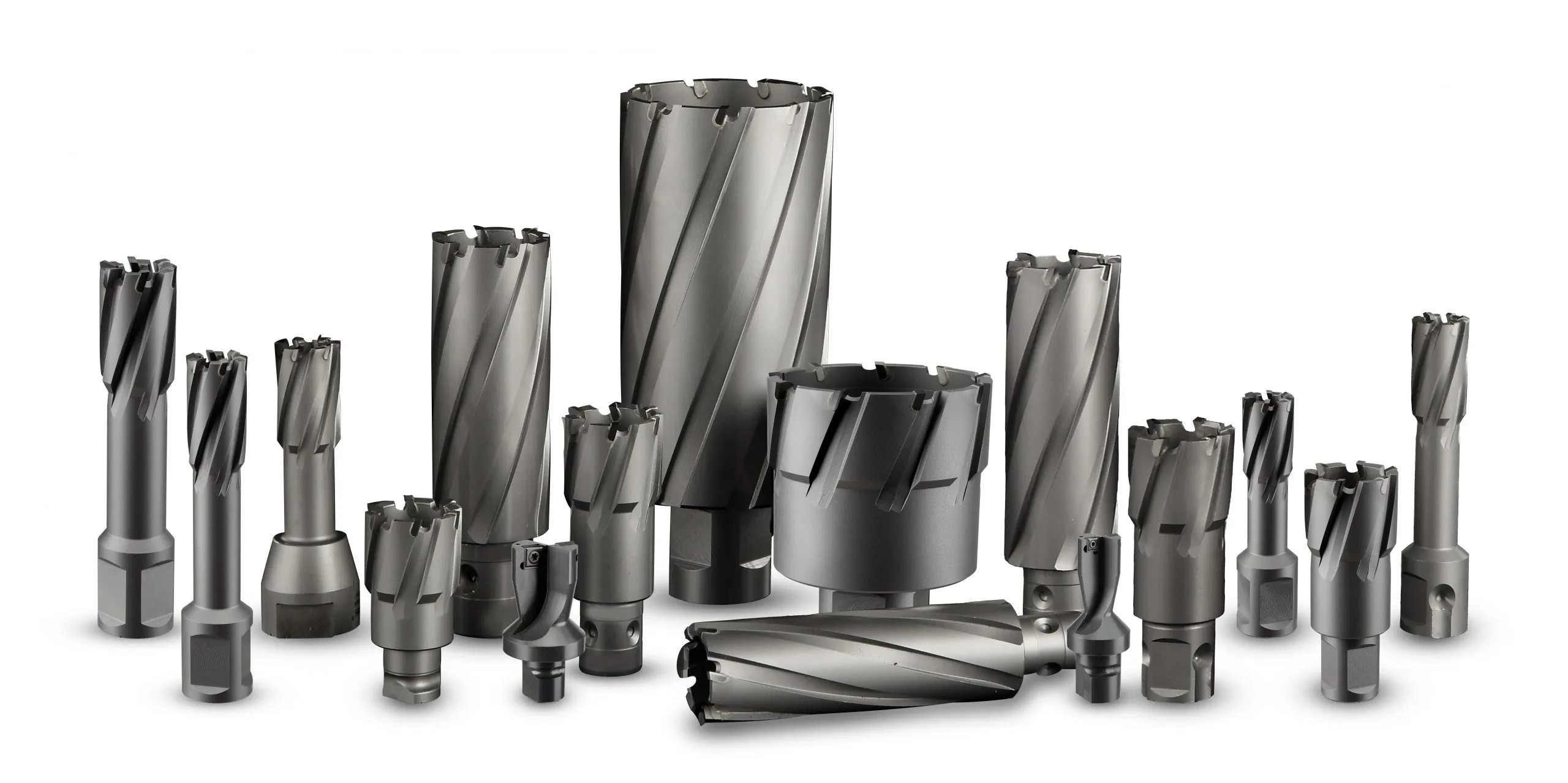

  • TCT Cutter

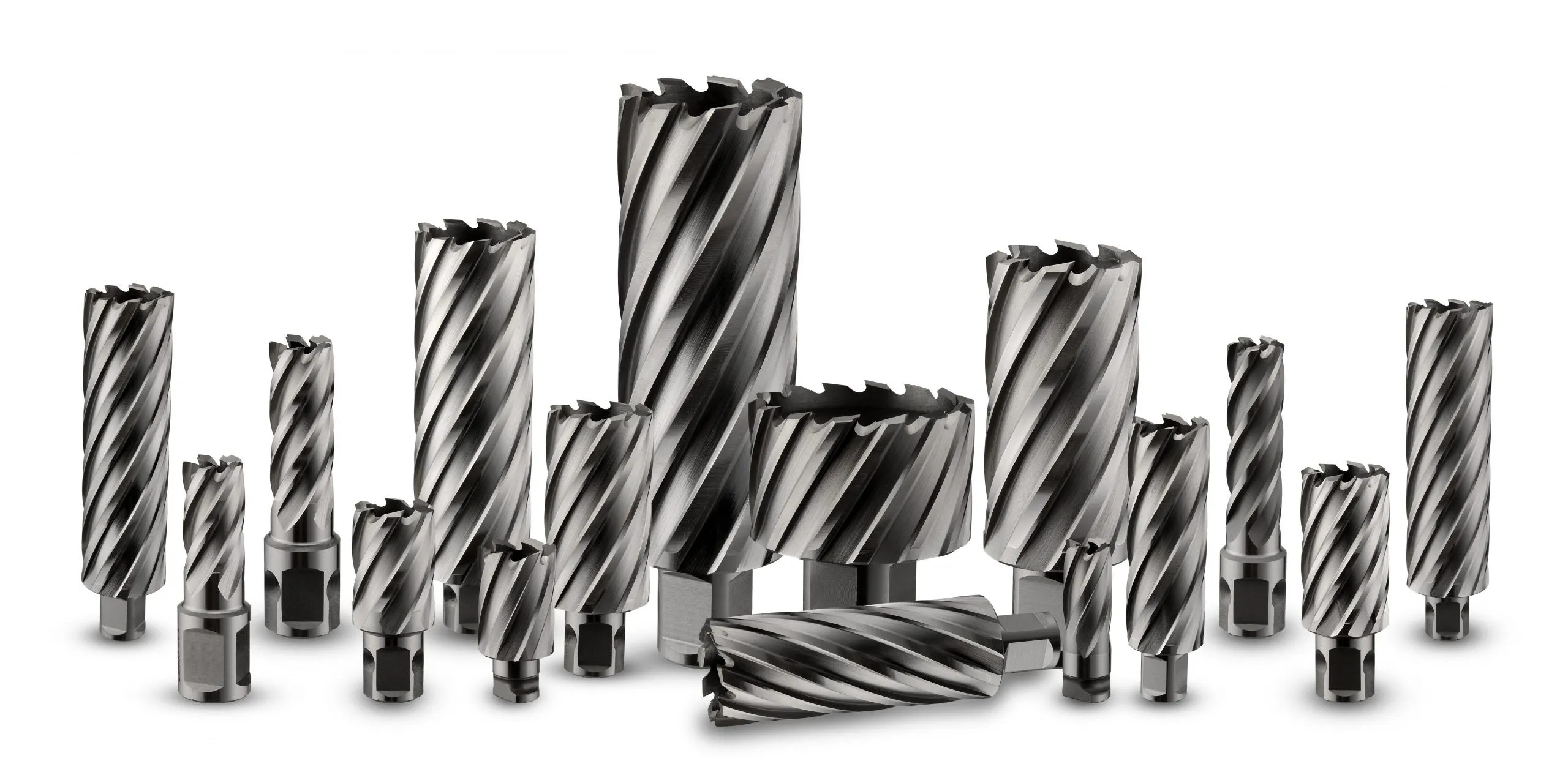

    HSS Cutter


    Chop Saws & Blades

    Whether you’ve got steel to slice or iron to cut, Rotabroach have the perfect solution – promising accuracy, safety and no burr. Our chop saws have been built with your business in mind, handling the unique requirements of the shipbuilding, transport and steel fabrication industries with ease and efficiency. They’re strong, reliable and tough enough to get the job done, every single time.

    ELEMENT 9
    • Motor Specification:
    • No load RPM:
    • Max Hole Cutting Capacity:
    • Overall Dimension:
  • 110V 1800W / 230V 1800W
  • 2300 RPM
  • 83mm depth / 12mm thickness
  • 465mm x 200mm x 310mm
  • ELEMENT 14
    • Motor Specification:
    • No load RPM:
    • Max Hole Cutting Capacity:
    • Cutting Capacity Pipe:
    • Overall Dimension:
  • 110V 2200W / 230V 2200W
  • 1300 RPM
  • 120mm x 120mm
  • 130mm
  • 565mm x 285mm x 405mm
  • Aluminium

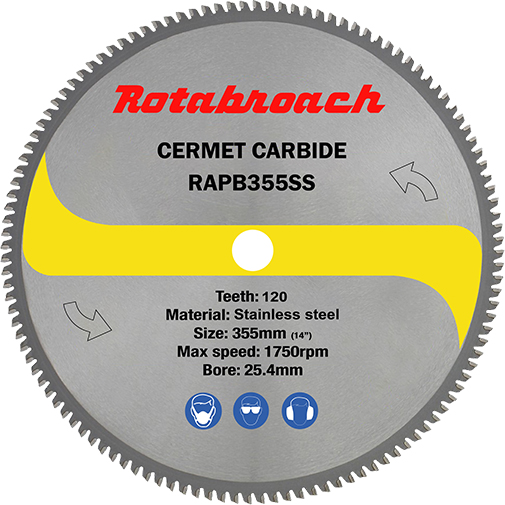

    Stainless Steel

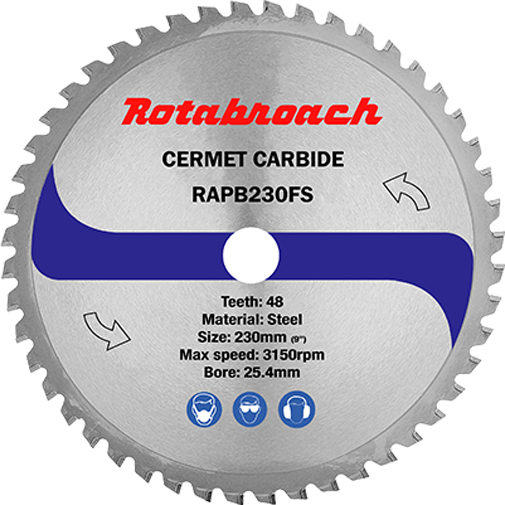

    Steel
