Soyer provides everything the world of stud welding technology has to offer. Everything straight from the manufacturer: portable mini stud welding equipment, matching welding guns and welding heads as well as large scale high-tech CNC stud welding machines. Our experienced engineers will provide you with comprehensive advice and will be glad to find the best, most cost-effective solution for you.
CAPACITOR DISCHARGE STUD WELDING
Capacitor discharge stud welding has been successfully used for many years all over the world. It allows weld studs with a maximum diameter of M12 to be welded. The welding process is executed by discharging the capacitor battery within a fraction of a second from 1 – 3 ms (0.001 – 0.003 sec.) using the welding element’s ignition tip. This procedure has proven invaluable especially in vehicle construction, sheet metal forming and decorative metal design

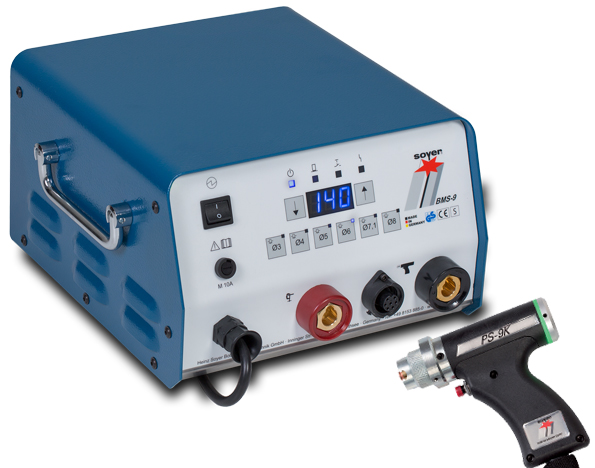

BMS 9

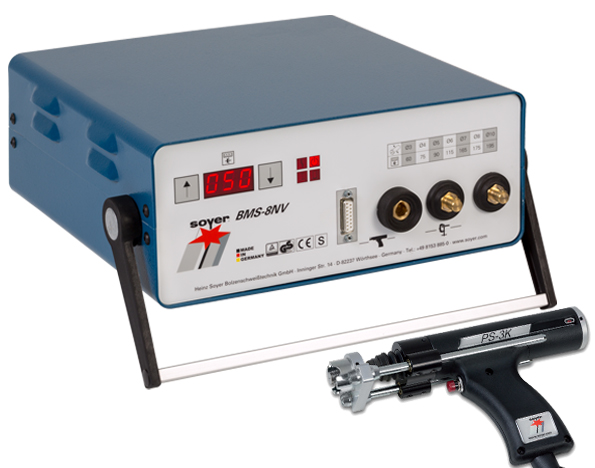

BMS 8N and 8NV

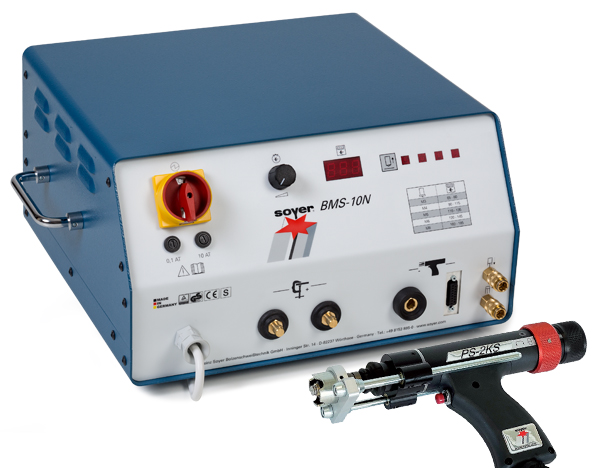

BMS 10N
DRAWN ARC STUD WELDING (DA)
Drawn arc stud welding is a welding procedure for maximum loads. It enables welding of weld fasteners measuring between 6 mm and 25 mm in diameter. The entire welding process is controlled and monitored by an electronic power source. This procedure creates high-quality welded connections and has proven invaluable in steel construction, mechanical engineering, shipbuilding, construction of prefabricated parts made from reinforced concrete, door and window construction, structural and civil engineering, fixture and pipeline construction.
PATENTED SRM STUD WELDING (SRM)
The patented SRM stud welding process (patent no.: 10 2004 051 389), in conjunction with the innovative HZ-1 universal weld stud featuring a plane end face and centering tip (patent no.: 10 2006 016 553) enables welds at a sheet thickness to stud diameter ratio of 1:10 instead of 1:4 as previously. In this process, the use of ceramic rings is no longer needed.

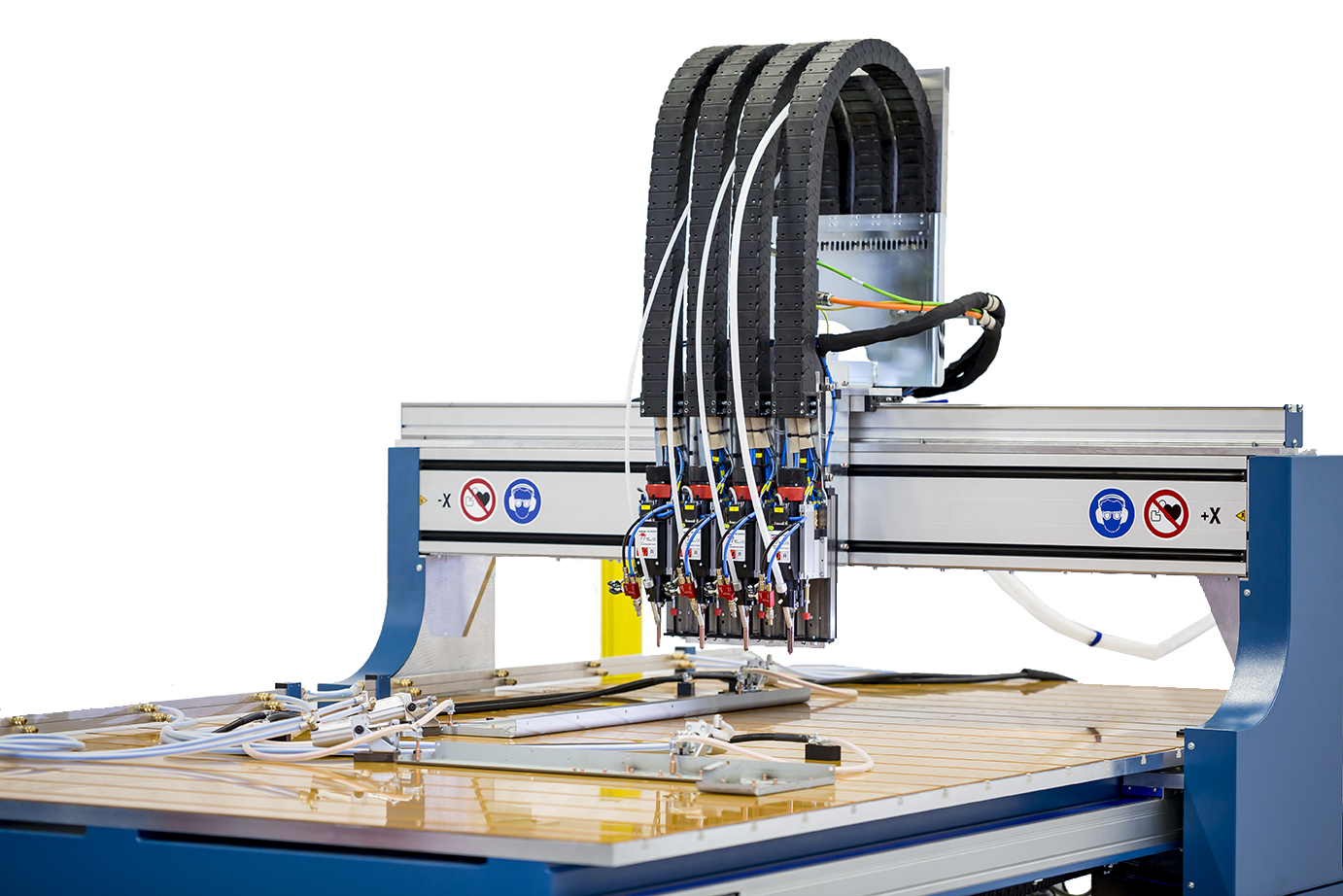

Automation – Made By Soyer
High performance and top precision are the fundamental features of SOYER CNC machining centres. Since 1970, company have been developing and producing customised stud welding machines in all sizes. Soyer provide a truly comprehensive range from semi-automated stud welding machines up to fully automated CNC machining centres in XXXL format.
